Product Dimensions 87.5"h x 35"w x 34.5"d

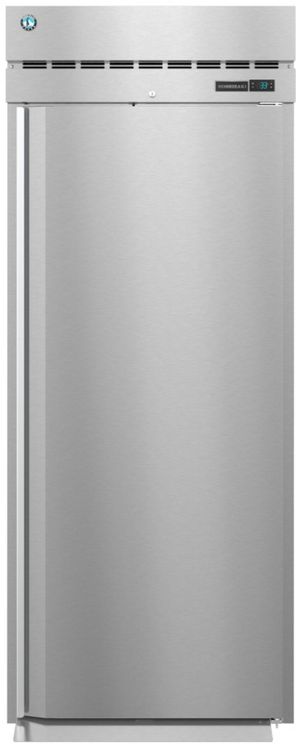

The RN1A-FS Steelheart Series Roll-In single section refrigerator with a full stainless door is a space saving workhorse. Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor with a net capacity of 38.13 cubic feet this efficient roll-in refrigerator and front air flow design.Read More
Exclusive “stepped” door design to protect recessed door gasket
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel interior and exterior
Sturdy 8 gauge stainless steel door hinges with welded pins are spring assisted self-closing and include a stay open feature
One piece, full door length, extruded aluminum flush mount door handle
Energy efficient thermostatic expansion valve self contained refrigeration system
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Interior LED light bar is mounted horizontally on the ceiling
Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor
R290 refrigerant
Standard with 4″ ramp
Unique “ducted” air distribution system
Nominal Compres. of 2750 BTU/hr at 1/2 HP
115v/60/1, 10 ft. cord and plug
Energy efficient automatic hot gas condensate evaporator
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Door Color | Stainless Steel |
| Handle Color | Stainless Steel |
| Fingerprint Resistant Finish | No |
| Type of Refrigerator | Freezerless Refrigerator |
| Installation Type | Freestanding |
| Depth Type | Counter Depth |
| Number of Doors | 1 |
| Door Panel Type | Solid |
| Ice Maker | No |
| Ice/Water Dispenser | No |
| Defrost System | Automatic |
| Refrigeration General Features | Locking Door, Interior Light |
| Custom Panel Ready | No |
| Garage Ready | No |
| Smart Compatible | No |
| Commercial Use Approved | No |
| Width (in.) | 35 |
| Depth (in.) | 34.5 |
| Depth w/Door Open 90 Degrees (in.) | 65.25 |
| Height (in.) | 87.5 |
| Overall Height (in.) | 87.5 |
| Shipping Depth (in.) | 39 |
| Shipping Width (in.) | 40.5 |
| Shipping Height (in.) | 93.5 |
| Collection Code | RN1A |
| ENERGY STAR Certified | No |
| ADA Compliant | No |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Voltage | 104-126 |
| Amp | 6.4 |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45 to 100°F |
| Control Setpoint Range | 31° to 52°F |
| Energy Consumption (kWh/day) @NSF | 3.186 |
| Heat Rejection (BTU/Hr.) @NSF | 774 |
| Approximate Nominal Compres. BTU/HR (HP) | 2750(1/2HP) |
| Refrigerant / Charge Amount (oz) | R290 / (4.6 oz) |
| Door Opening | 29.25” x 72.75” |
| Interior Storage Capacity (CF) (AHAM) | 38.13 ft3 |
| Overall Width x Depth (with ramp) | 35” x 38.9” |
